Generators

Diesel power generator sets remain the number one choice for delivering standby and emergency power for industrial, commercial and home users. Durability, quiet operation, low maintenance and longer life span are a few reasons which make them the preferred power source. Moreover, they are available in numerous sizes and configurations and can be built to your exact specifications.

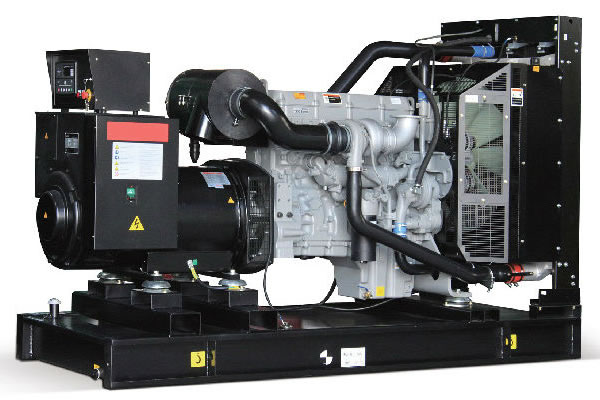

Open-type DG Set

(400/203V) or (220/127V) output, 1500/1800 rpm, heavy duty, self-priming diesel fuel system, circuit breaker, critical grade silencer, industrial silencer, emergency-stop switch, 12 or 24 volt starter and alternator, belt and fan guard, dry type air-cleaner, vibration isolator mounts, digital auto start controls with safety shutdown and fault indications.

Our products range from 5.6 KW/7 KVA to 1646 KW/2058 KVA. P.I gensets are designed keeping your requirements in mind and using engines such as PERKINS, LISTER PETTER & CUMMINS, and alternators, such as MECCALTE, STAMFORD & LEROY SOMER.

Important features:

  • Automatic starting system
  • Single and 3 phase
  • Battery charging Alternator
  • Factory load testing
  • Mainline circuit breaker
  • Skid mounted with fuel tank
  • Rubber mounted vibration isolator
  • Industrial engine
  • Industrial muffler
  • Full digital control panel with wide range of controllers to cover all your requirements and features, power indicator light, fuel light
  • Emergency shutdown for low oil pressure and high water temperature
  • Large bottom fuel tank to ensure long working time
  • Capability to connect it to ATS
  • Capability to add auxiliaries systems
  • Ability to connect the genset to the network

* Fuel monitoring and feeding system, oil monitoring and feeding system, auto dummy load system etc.

* Start from receiving SMS and e-mails for the basic controllers upto full controlling & monitoring


Closed-type DG Set

P.I closed-type gensets are ready to run gensets that are mounted on heavy-duty steel skids. They are packaged with an integrated base fuel tank which provides long hours of operation, at 100 percent load.

Important features:

  • Secure maintenance access
  • Lifting eye
  • Set mounted tropical duty radiator
  • Engine driven cooling fan with protection guard
  • Low noise
  • Control panel Inspection window
  • Fork-lift pockets
  • Emergency shutdown for low oil pressure and high water temperature
  • Large bottom fuel tank to ensure long working time
  • Exhaust flexible sections with connections
  • Loads and function test
  • Powder Coated Canopy to P.I Standard finish
  • Factory load testing
  • Rubber mounted vibrator isolator
  • Full digital control panel with wide range of controllers to cover all your requirements and features
  • Capability to connect it to ATS
  • Capability to add auxiliaries systems
  • Ability to connect the genset to the network

* Fuel monitoring and feeding system, oil monitoring and feeding system, auto dummy load system etc.

* Start from receiving SMS and e-mails for the basic controllers upto full controlling & monitoring

Genset Makes:


Caterpillar

Engineered to provide reliable and trouble free power, Caterpillar Gen Sets perform to international standards. The prime mover of the Generator Set is a Caterpillar Diesel Engine coupled to an AC Generator, which meets international Quality Standards. The engine and AC generator are matched perfectly to ensure torsional compatibility and the complete generator set is packaged and tested as a single unit for overall performance.

Most importantly Caterpillar generator sets are pre designed, engineered, packaged and tested to Caterpillars exacting standards to not only deliver 100% performance from day one but also to provide customers with Single Source Reliability

CAT 3512B TA DIESEL ENGINE

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum Weight

CAT GENERATOR

  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High efficiency

CAT EMCP 4 SERIES CONTROL PANELS

  • Simple user friendly interface and navigation
  • Scalable system to meet a wide range of customer needs
  • Integrated Control System and Communications Gateway

Cummins

Cummins Generator for various industrial uses. Complete Range of Diesel/Gas operated Generating Sets from 7.5 KVA to 3000 KVA (2.4 MW) powered with World-renowned Cummins Engines Complete range of Electrical Panels i.e. P.C.C. and Bus Ducting up to 6250 Amps. MCC Panels, Control & Relay Panels, AMF Panels, PLC based Auto Synchronizing and Auto Load Sharing Panel etc. Our Panels are approved at CPRI, Bhopal for short circuit and IP: 54 degree of protection. World class Silent / Acoustic Gen sets from 7.5 KVA to 3000 KVA.


Perkins

A subsidiary of Caterpillar Inc., is primarily a diesel engine manufacturer for several markets including Agricultural, Construction, Material Handling, Power Generation and Industrial. It was established in Peterborough, England D.G.Sets starting from 10 kva upto 3000 kva. The Range includes 415 Volts LT Sets as well as 3.3 / 6.6 /11 KV HT Sets. SGPL sets have established benchmarks in fuel efficiency, reliability and adherence to global emission norms


Kirloskar

KOEL Green genset is recognized as one of the worlds leading generating set. A major global player, specialized in manufacturing of both air cooled and liquid cooled engines / diesel gensets with power output covering from 5kva to 5200kva & 1800kva to 6300kva Ready to use genset with 5 – 5200kva engines 4 valve HPCL technology and available in wide range of power output coveting from 320kva to 630kva.

Canopies

By adopting specialized sound insulation materials, a widely accepted and recognized supplier in the generator canopy business. Our soundproof enclosures meet our customer's stringent requirements of acoustic performance and timely deliveries.

Our products provide clients with performance as designed and come complete with after sales support.

Our products undergo rigorous Quality Control checks for rectifying flaws and ability to perform as per design requirements.


Sound-proof Canopies

Soundproof canopies absorb most of the radiated sounds with performance ratings guarantee sound levels of no greater than 65—78 db(A) at 7 meters, under free field conditions. Our systems are built on a modular concept and can be easily detached. Our enclosures incorporate a ventilation system which enable heat dissipation and efficiently cool down the enclosed gensets. We also manufacture residential grade acoustic cabinets which have enhanced sound attenuation capabilities.

Salient features:

  • Weather proof
  • Robust and modular design
  • High attenuation capabilities
  • Vibration free enclosures
  • Easy monitoring window provided
  • User-friendly (low maintenance)
  • Eco-friendly
  • Self ventilated, ensures better genset performance
  • Easy to maintenance access

Super- silent Canopies

P.I super-silent canopies are compactly designed using super efficient sound absorbing insulation which ensures superior performance. These canopies come with elegant exterior finishes. We also offer modular acoustical canopies designed for quick assembly and optimum sound attenuation capabilities.

Salient features:

  • Heavy-duty sturdy steel base frame
  • Provision of air-intake and air-exhaust silencers for preventing leakage of sound
  • Double walled with internal wall insulated by GI perforated sheet
  • Noise suppression by use of different techniques
  • Separate control panel room
  • Built-in fuel tank
  • Windows for monitoring
  • Weather-proof design
  • High sound attenuation levels (below 65dB(A) at 7 meter)

Container Canopies

In addition to our standard acoustic enclosures and ISO 20, 40 HQ containers, we custom design and manufacture silenced and super silenced containers for any size or brand of diesel power genset, leaving the ISO lifting and transportation points intact.

Salient features:

  • Universal design (allowing a wide range of generators to be installed)
  • Enhanced noise attenuation for larger gensets
  • Externally stop button
  • Soundproof door
  • Cable entry position
  • Air-inlet and outlet with acoustical louvers
  • ISO standard heavy-duty locks
  • Extra dual-pass silencer
  • Fluorescent light along inner-walls with lighting switch conduit
  • Fire extinguishers
  • Ladder
  • External fuel inlet and return provision
  • Interior insulation covered by GI perforated sheets
